Send Email

This tab is used to configure mail (SMTP) parameters. These are the basic parameters for email forwarding. They need to be configured correctly, if mail message should be sent by the service.

Mail Server Options

../_images/a-sendemail-server.png

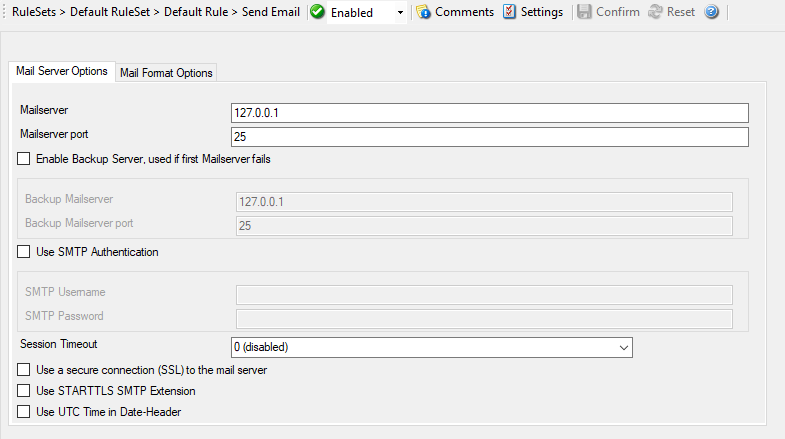

Action - Send Email - Mail Server Options

Mailserver

File Configuration field:
szSMTPServer
Description:

This is the Name or IP address of the mail server to be used for forwarding messages. You can either use an IPv4, an IPv6 Address, or a Hostname that resolves to an IPv4 or IPv6 Address. Please note that this server must be able to relay messages if the recipient is not hosted at this server. Be sure to contact your mail server’s administrator if in doubt on this issue.

The service expects to talk to a standard SMTP mail server. Message relaying to the final destination must be permitted.

Mailserver port

File Configuration field:
nSMTPPort
Description:
Port the mail server is to be contacted at. Usually, this is 25. It might, however, be changed in your system. Then, specify the port your mail server uses. If in doubt, try the default of 25 - or contact your mail server administrator.

Enable Backup Server, used if first Mailserver fails

File Configuration field:
nEnableBackupServer
Description:
When enabled, you can configure a second Mailserver that will be used if the regular Mailserver is not available/accessible.

Backup Mailserver

File Configuration field:
szSMTPServerBackup
Description:
In case that the connection to the main configured mail server can not be established, the backup mail server is tried. Note that an error is only generated, if the connection to the backup server fails as well.

Backup Mailserver port

File Configuration field:
nSMTPPortBackup
Description:
Port the mail server is to be contacted at. Usually, this is 25. It might, however, be changed in your system. Then, specify the port your mail server uses. If in doubt, try the default of 25 - or contact your mail server administrator.

Use SMTP Authentication

File Configuration field:
nUseSMTPAuth
Description:

Check this box if your server requires SMTP authentication. To fight SPAM, more and more server operators allow relaying only for authenticated users. It might even happen that an existing account does no longer work because the server has been reconfigured to disallow anonymous posting.

If your server requires (or supports) SMTP authentication, check this box and enter your User ID and password in the boxes below. The exact values will be provided by your server operator – if in doubt, please ask the mail server support.

If the mail server does not support authentication, leave this box unchecked.

We recommend using authentication if it is available. Even when the current server configuration allows unauthenticated relay, this potentially will change in the future (as the SPAM problem grows). If you already use authentication, such a server configuration change will not affect you. Otherwise, it will disrupt mail service.

Session Timeout

File Configuration field:
nTimeoutValue
Description:

This option controls if multiple rapidly incoming messages should be combined to a single email message. The SMTP session with the server is held open for the specified timeout period. Please note that the period is specified in miliseconds, not seconds.

If a new event arrives within the specified timeout period, that event will be included in the same email message as the previous one. Then, the timeout is re-started. As such, any events coming in within successive timeout periods will be combined in a single mail.

This is most appropriate when large burst of messages are expected and these should be combined in few mail messages. Otherwise, multiple mail messages can easily overflow the administrator’s mailbox.

The session timeout is user configurable between 1 and 2147483647 milliseconds (32bit integer) or different pre-set values. Larger values are not supported as they probably affect the SMTP server performance and can lead to unpredictable results.

The session timeout of zero milliseconds has a special meaning: if it is selected, every event will be sent in a separate message, no matter how fast two messages occur after each other.

Use a secure connection (SSL) to the mail server

File Configuration field:
nUseSSL
Description:
This option enables SSL-secured traffic to the mail server. Please note, that this only works, if the receiving mail server supports SSL-secured transmission of emails.

Use STARTTLS SMTP Extension

File Configuration field:
nUseUTCTimeStamp
Description:
Some Email Readers do not support UTC time in date-headers. Therefore here is a switch to turn the UTC time on or off.

Use UTC Time in Date-Header

File Configuration field:
nUseUTCTimeStamp
Description:
Some Email Readers do not support UTC time in date-headers. Therefore here is a switch to turn the UTC time on or off.

Mail Format Options

../_images/a-sendemail-format.png

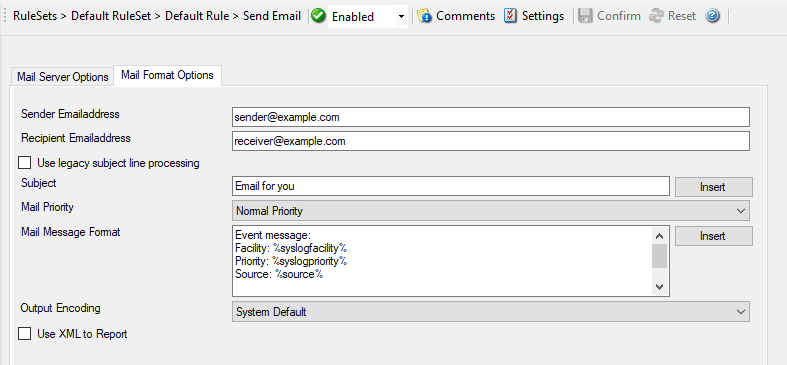

Action - Send Email - Mail Format Options

Sender Emailaddress

File Configuration field:
szSMTPSender
Description:
Email address used as the sender address for outgoing messages. In order for your SMTP server to accept it, it probably must be a valid address.

Recipient Emailaddress

File Configuration field:
szSMTPRecipient
Description:
The recipient emails are addressed to. To send a message to multiple recpients, enter all recipient’s email addresses in this field. Separate addressed by spaces, semicolons, or commas (e.g. "receiver1@example.com, receiver2@example.com"). Alternatively, you can use a single email address and define a distribution list in your mail software. The distribution list approach is best if the recipients frequently change or there is a large number of them. Multiple recipients are also supported. They can be delimited by space, comma, or semicolon.

Use legacy subject line processing

File Configuration field:
nUseLegacySubjectProcessing
Description:

This checkbox specifies which type of subject line processing will be done. If it is checked, the old-style processing using single character replacement sequences is applied. If it is left unchecked, the far more powerful event property based method is used.

In legacy mode, the following replacement characters are recognized inside the subject line:

%s IP address or name (depending on the “resolve hostnames” setting) of the source system that sent the message.

%f Numeric facility code of the received message

%p Numeric priority code of the received message

%m the message itself. Please note: this is the complete message text and can be rather lengthy. As such, it is most probably subject to truncation. If that occurs, all other information after the %m replacement character is also truncated. As such, we strongly recommend using the %m replacement at the end of the subject line only.

%% It represents a single % sign.

As an example, you may have the subject line set to Event from %s: "m" and enabled legacy processing. If a message This is a test were received from 172.16.0.1, the resulting email subject would read: Event from 172.16.0.1: This is a test

In non-legacy mode, the Property Replacer can be used. With it, you can include any property from the event message and also modify it. Please visit the Property Replacer documentation for details.

As an example, in non-legacy mode, you can set the subject line to Mesg: '%msg:1:15%' From: %fromhost%. If the message This is a lengthy test message were receive from 172.16.0.1, the resulting email subject would read: Mesg: 'This is a lengt' From: 172.16.0.1. Please note that the message is truncated because you only extracted the first 15 charactes from the message text (position 1 to 15).

Subject

File Configuration field:
szSMTPSubject
Description:

Subject line to be used for outgoing emails and it is used for each message sent. It can contain replacement characters or “Event Properties” to customize it with event details. This is especially useful when sending email to cellular phones or pagers, which often display only the subject line and not the actual message body. The subject line – after expansion of the any replacement sequences – can hold a maximum of 255 characters. Characters beyond this will be truncated. Please note that many email systems impose a more strict limit and truncation may occur before the 255-character limit. It is advisable to limit the subject line length to 80 characters or less.

The mail body will also include full event information, including the source system, facility, priority, and actual message text as well as any other information that came with this event. As there is no size limitation for message bodies, the body always contains the full message received (except otherwise configured – see below).

Please note that Insert Menu entry allows you to add replacement characters e.g. %msg% - you can send out the actual message of an event in the subject line.

There will be one email for each received message. Email delivery is meant for urgent notifications and actions (e. g. calling pagers and such). It is not meant to provide an email report.

Please note that The message content of the Message field can be configured. Event properties are described in the property replacer section.

Mail Priority

File Configuration field:

nMailPriority

  • 0 = low
  • 1 = Default
  • 2 = High
Description:
Here you can adjust the priority with which the mail will be sent. You can choose between “low”, “normal”, and “high” priority. With this you can give your setup some complexity, being able to send some events as “important” and others with less importance.

Mail Message Format

File Configuration field:
szSMTPBody
Description:
This is the format of the message body. Properties from the event can be included by using the Property Replacer. Please note that the message body is only sent if “Include Message/Event in Email Body” is checked.

Output Encoding

File Configuration field:
nOutputEncoding
Description:
Determines the character encoding mode.

Use XML to Report

File Configuration field:
nUseXMLtoReport
Description:

If checked, the received event will be included in XML format in the mail. If so, the event will include all information, like the original timestamp, the facility, priority etc. XML format is especially useful if the mail is sent to an automated system, which will then parse the message.

If unchecked, just the plain text message will be included in the mail. This format is more readable for a human reader.
